Cable and Pipe Entry Seals
For cable and pipe penetrations through walls, floors and equipment enclosures, AMPdossen provides modular sealing systems that form durable barriers against water, fire, dust and gas in critical infrastructure such as metro systems, utility tunnels, substations, data centers, healthcare facilities and chemical plants.
Selecting a cable or pipe entry requires the cable or pipe diameter, wall thickness, fire resistance rating and watertightness requirements. Contact us for an integrated solution.
Hotline +86 510 8722 8181
One Flexible Modular Solution
Protecting Every Entry
AMPdossen cable and pipe sealing systems use a modular design comprising elastomeric sealing elements, metal or engineering-plastic frames and compression units. The system forms a secure seal around cables or pipes of different diameters, providing water and dust protection rated IP66 or higher and meeting fire resistance ratings from EI 60 to EI 120 where required.
The system can be set in concrete in new structures or retrofitted in existing buildings. Adjustable modules can be reconfigured as cable quantities change, simplifying maintenance and future capacity expansion.
- Water / Dust Protection
Rated IP66 or higher - Fire Resistance
EI 60 / EI 120 options - Air-Pressure Differential Resistance
For airtight or positive-pressure rooms - Modular Expansion
Easy cable additions and removals
Cable Entries
Designed to seal power and communications cables passing between spaces. The range includes ARD rectangular cable entry systems, ARK round cable press seals and ADG single-entry cable press seals, providing complete solutions for different wall constructions and cable types.
- Rectangular / Round
Multiple opening formats - Split Construction
Staged installation - Power / Communications
Wide cable diameter range - Water and Fire Protection
Multiple performance ratings

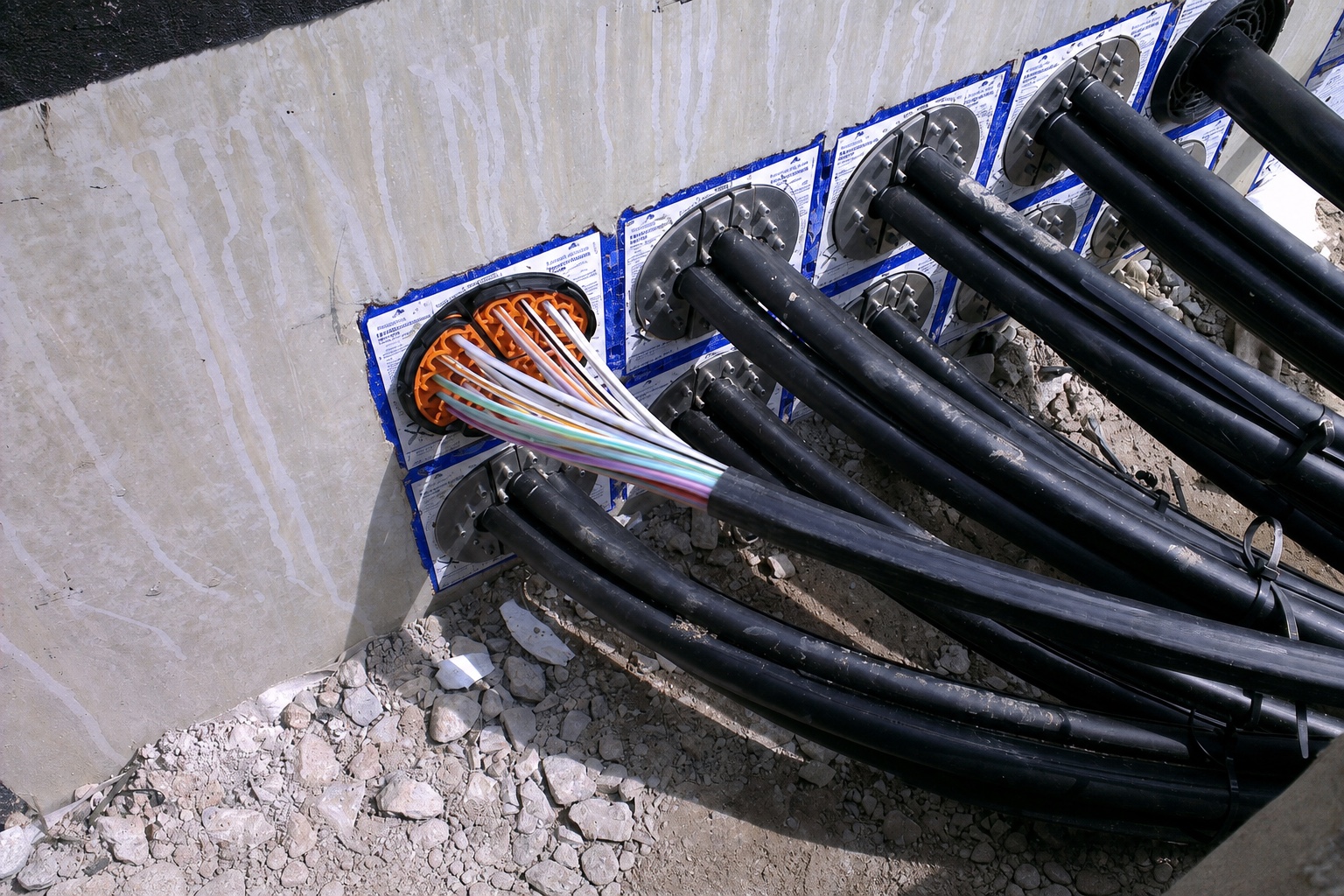

ARD Series · Rectangular Cable Entry System
A rectangular modular cable entry system with a steel frame for multiple cable circuits passing through walls and floors. Modular elastomer blocks and compression components enable efficient installation on site.
- High-density, multi-circuit cable penetrations
- Combined water, fire and dust protection
- Recommended for substations and metro main substations

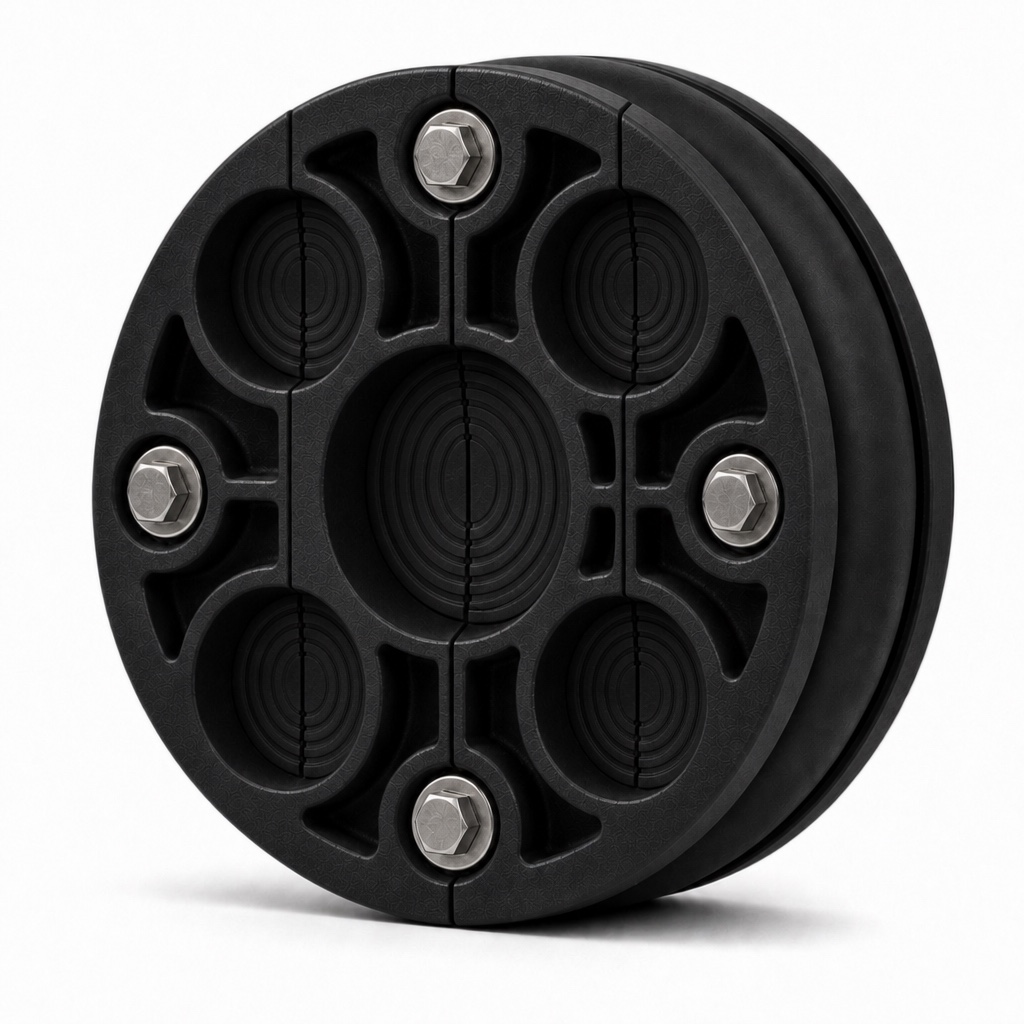

ARK Series · Round Cable Press Seal
A compact, adaptable cable press seal installed in core-drilled holes or wall sleeves. Modules accommodate different cable diameters and can be added or replaced later to simplify maintenance and expansion.
- For core-drilled holes or wall sleeves
- Modules can be replaced in stages to support expansion
- Recommended for plant rooms and control buildings

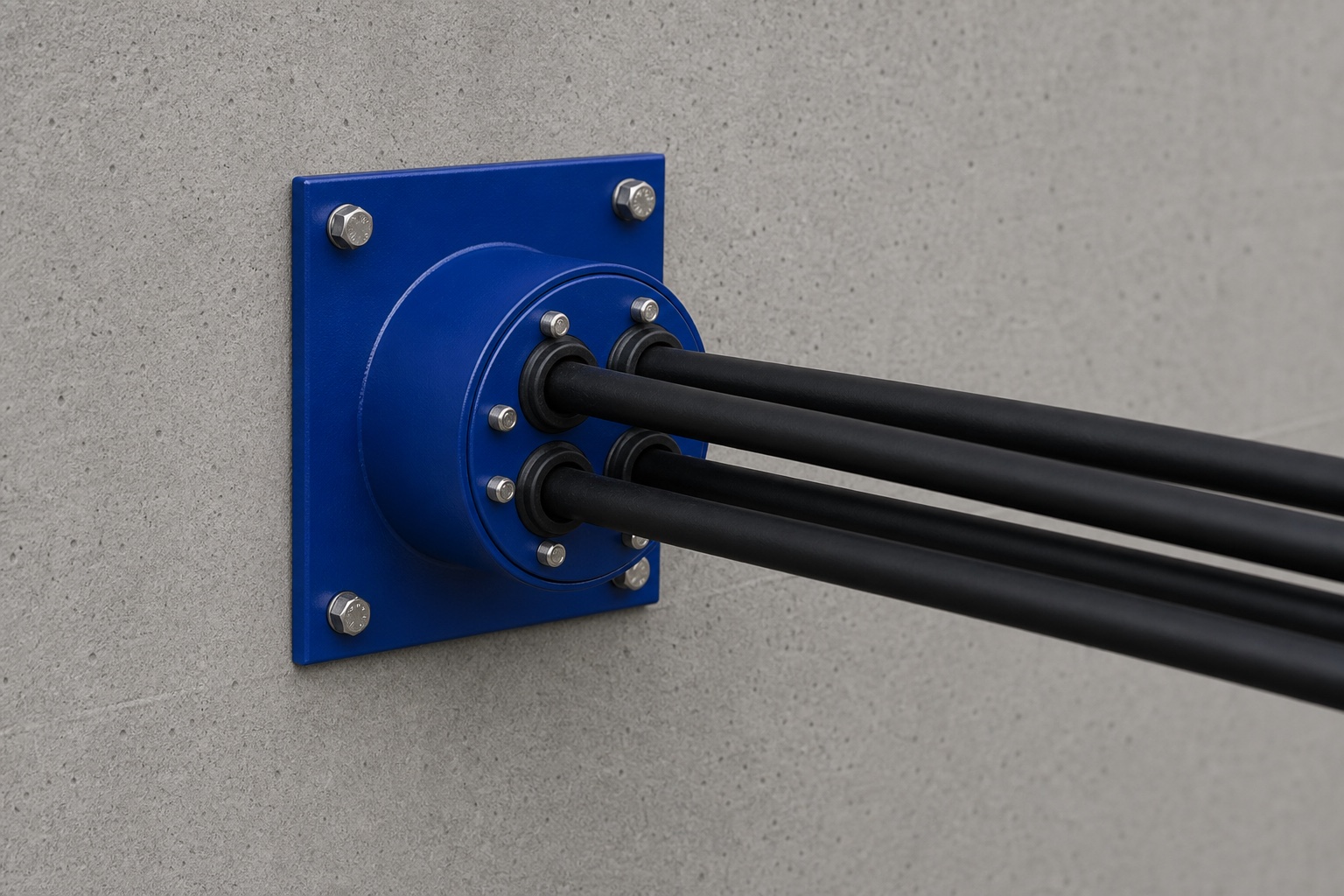

ADG Series · Single-Entry Cable Press Seal
An easy-to-install solution for one or a small number of cables passing through a wall. It provides economical, effective point sealing for tanks, process equipment enclosures and building entries.
- Single- or dual-cable penetrations
- Equipment enclosure and building-entry sealing
- Compact construction and straightforward installation
Pipe Entries
Pipe entries through walls or floors are vulnerable points for water, gas and fire migration. AMPdossen AKD modular pipe seals provide matched annular space seals for different pipe materials, diameters and sleeve configurations.
- Water / Gas / Oil Lines
Multiple media applications - Annular Space Seals
For circular openings - Building Entries /
Utility Supply-Line Entries - Withstands Mechanical Stress
And pressure differential changes

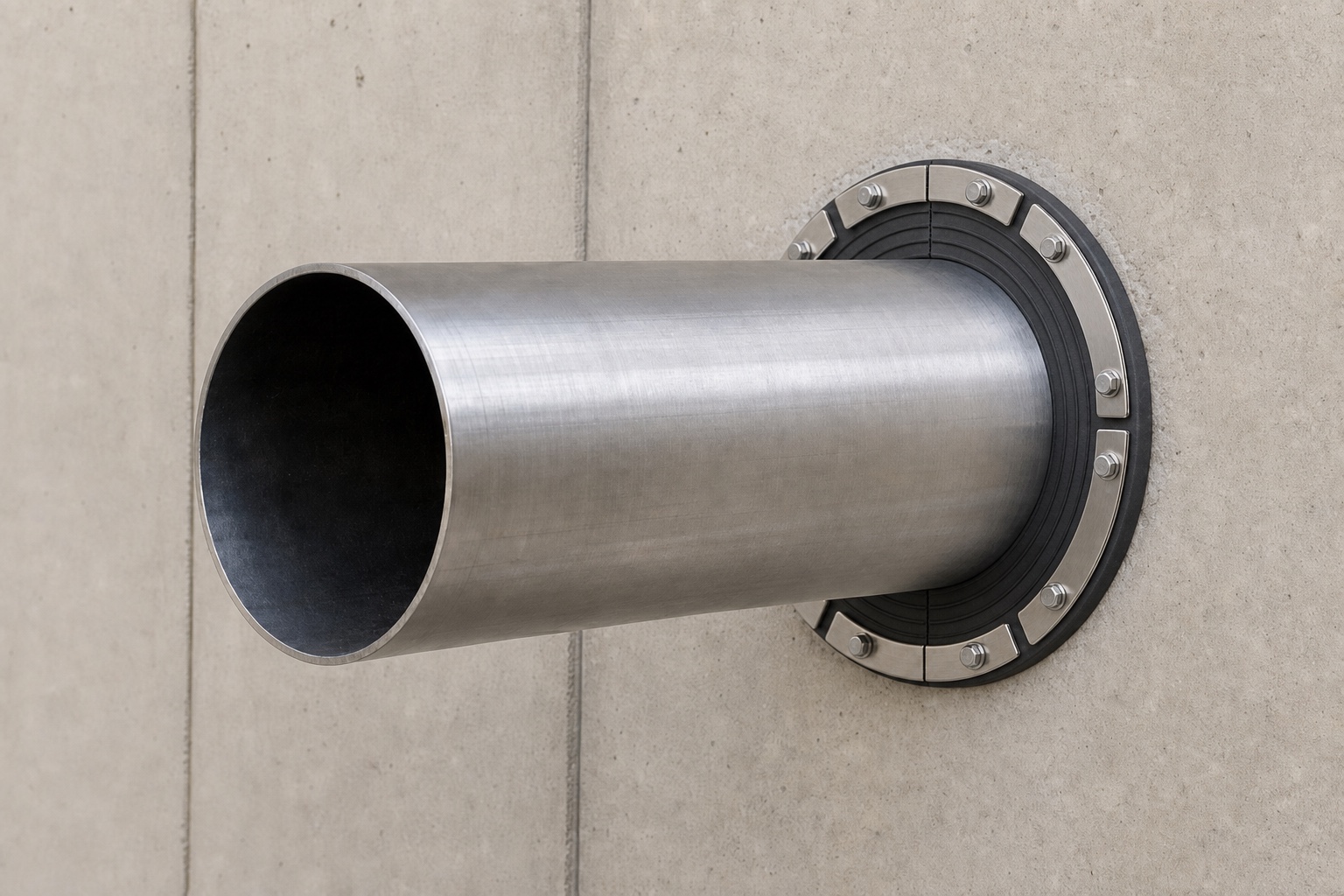

AKD Series · Modular Pipe Seal
A reinforced modular pipe seal with high pressure resistance for locations exposed to sustained hydrostatic pressure, including projects with high groundwater levels, utility tunnels and tunnel exterior walls. It maintains a reliable seal under long-term water and soil pressure.
Why Choose AMPdossen Cable and Pipe Entry Seals
From design drawings through site acceptance, we provide complete product, engineering and service support to help project teams solve cable and pipe entry challenges efficiently.
Multi-Hazard Barrier
Integrated protection against water, fire, dust and gas meets the demanding requirements of critical infrastructure.
Modular Sealing
Sealing modules are selected by cable or pipe diameter, enabling flexible configurations and straightforward future expansion, retrofit and maintenance.
Efficient Installation
Suitable for setting in concrete and existing-site retrofits, with installation guidance, acceptance criteria and quality documentation to control construction risk.
Proven Project Experience
Applied in multiple 110/220 kV substations, metro main substations, medical centers and petrochemical projects. See our project references.
Need a Cable or Pipe Entry Solution for Your Project?
Provide the wall thickness, cable or pipe schedule and required fire resistance rating. Our engineering team will select the appropriate product combination and outline the installation requirements.
