SUZHOU METRO LINE 3 110 KV MAIN SUBSTATION ————STOP WATER LEAKING INTO THE MAIN SUBSTATION
CABLE SEALING SYSTEM HSI 150
HSI 150-K2 wall insert 2,000 – 2105 mm

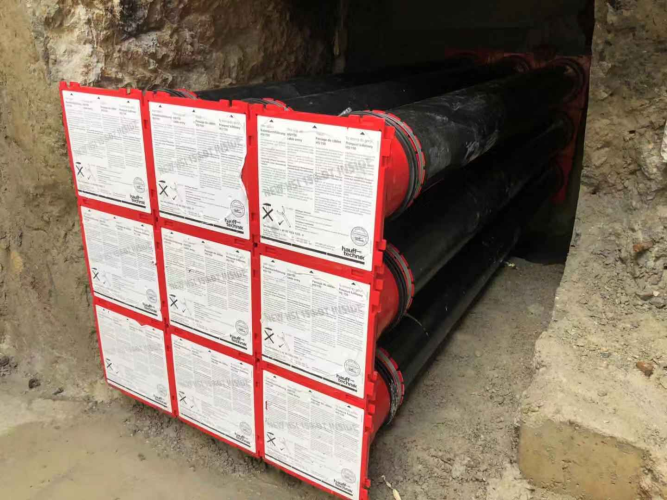

HSI 150-K2 package, mounted in formwork

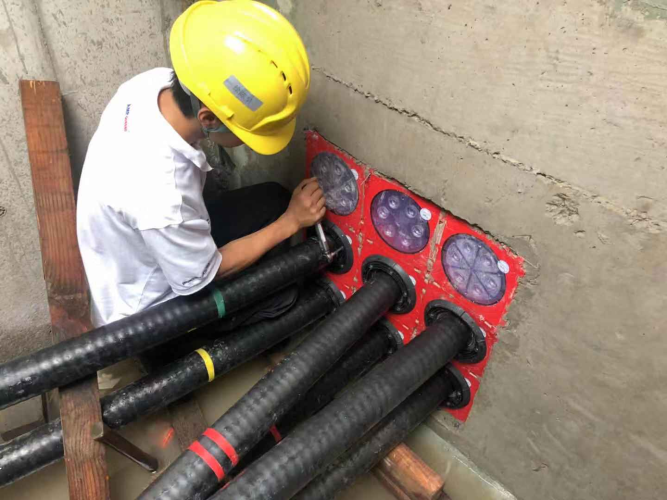

Mounting the cable press seal HSI 150-DG-1/70-112
Mounting the cable press seal HSI 150-DG-1/70-112

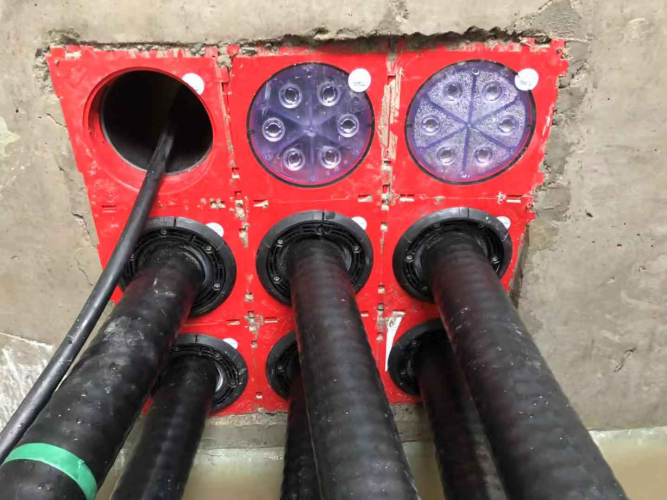

Sealing with HSI 150-DG-1/70-112

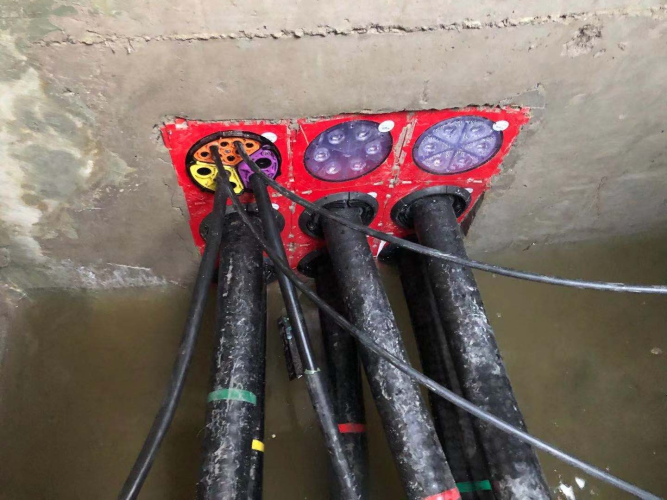

HSI 150-K2 package, sealed with Segmento and HSI 150-DG
Project information and solution provided by AMPdossen
PROJECT INFORMATION
| Project time | 2019.10 |
| Location | Jinjihu Road, Suzhou Industral Part, Wuzhong District, Suzhou, Jiangsu Province |
| Owner | Suzhou Rail Transit Co., Ltd. |
| Installation company | Suzhou Yongsheng Construction Co., Ltd. |
SOLUTIONS BY AMPdossen
| Specification | Cable entry systems and cable sealing systems |
| The solution | HSI 150-K2 mounted into manhole as a universal solution. Sealing of cables with HSI 150-DG and Segmento. |
| Products used | HSI 150-K2-Varia/2000-2105 HSI 150-DG-1/70-112 Segmento SEG 2/31, SEG 3/26, SEG 8/15 |
