PN：6/10/16
DN: 20-600
T[°C]: -10 to +130

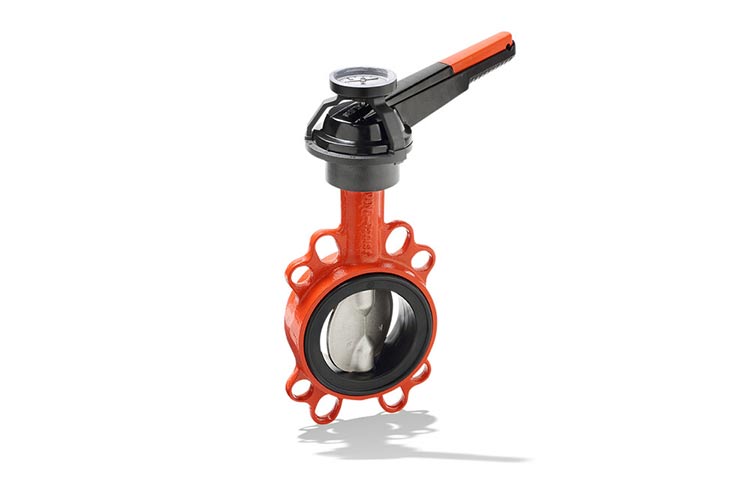

Centred-disc butterfly valve with ISO 5211 compliant square shaft end for butterfly valves from DN 350, with heat barrier and elastomer liner (EPDM XU or nitrile K), with lever, manual gearbox or electric actuator (BOAXMAT-S and BOAXMAT-SF); semi-lug body (T2) or full-lug body (T4) for downstream dismantling and dead-end service. Valve disc made of stainless steel 1.4308, connections to EN.
Application：
Hot-water heating systems
Air-conditioning systems
Domestic water supply
Paint shops
Swimming pools
Rainwater harvesting
Washing plants
Pressure boosting
General irrigation systems
Spray irrigation systems
